NGINX Graphite Module: Send Server Metrics to Graphite

The NGINX Graphite module collects per-location performance metrics from your NGINX server and sends them directly to Graphite (Carbon) for monitoring and visualization. Instead of parsing access logs or scraping status pages, this module aggregates stats in shared memory and transmits calculated values over UDP or TCP at configurable intervals — without affecting request processing.

Developed and battle-tested at Mail.Ru (one of Russia’s largest web services), the NGINX Graphite module tracks request rates, response times, bytes transferred, HTTP status code distribution, upstream cache hit rates, and more. It also supports percentile calculations, conditional metric collection, and multiple aggregation intervals.

Why Use the NGINX Graphite Module?

NGINX provides a built-in stub_status module that exposes basic connection and request counters. However, stub_status has significant limitations:

• It only reports global totals (active connections, total requests)
• It provides no per-location breakdown
• It offers no response time tracking
• It has no status code distribution (2xx vs 4xx vs 5xx)
• It requires an external scraper to poll the endpoint

The NGINX Graphite module solves all of these problems. It pushes granular, per-location metrics directly to your Graphite server, giving you deep visibility into how each endpoint performs.

For an alternative approach using an in-NGINX dashboard, see the NGINX VTS Module article. If you need scriptable request handling alongside monitoring, the Lua NGINX Module can complement the Graphite module with custom metric injection.

How It Works

The NGINX Graphite module operates in three stages:

1. Collection: A log-phase handler runs after each request completes. It records metrics (response time, bytes sent, status code, etc.) into a fixed-size shared memory zone accessible by all worker processes.

2. Aggregation: Metrics are aggregated using configurable functions — averages, sums, per-second rates, or gauges — across configurable time intervals (e.g., 1 minute, 5 minutes).

3. Transmission: A timer fires at a configurable frequency (default: every 60 seconds). It reads the aggregated values from shared memory and sends them to Carbon in Graphite’s plaintext protocol (metric.path value timestamp\n) over UDP or TCP.

Because all aggregation happens in shared memory with a fixed allocation, the module adds minimal overhead to request processing. The network send is non-blocking and happens on a timer, not in the request path.

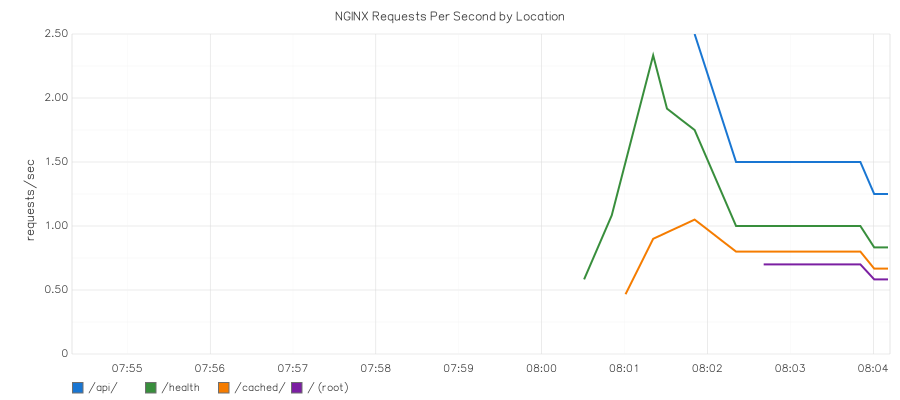

The screenshot below shows real per-location RPS metrics collected by the NGINX Graphite module and rendered in Graphite’s web interface:

Installation

RHEL, CentOS, AlmaLinux, Rocky Linux

sudo dnf install https://extras.getpagespeed.com/release-latest.rpm
sudo dnf install nginx-module-graphite

Then load the module by adding the following at the top of /etc/nginx/nginx.conf, before the events block:

load_module modules/ngx_http_graphite_module.so;

For more details on the RPM package, see the nginx-module-graphite RPM page.

Debian and Ubuntu

First, set up the GetPageSpeed APT repository, then install:

sudo apt-get update
sudo apt-get install nginx-module-graphite

On Debian/Ubuntu, the package handles module loading automatically. No load_module directive is needed.

For more details, see the nginx-module-graphite APT page.

Configuration

The NGINX Graphite module provides four directives. All metric collection is configured declaratively in the NGINX configuration file.

graphite_config

Context: http

This is the global configuration directive. It must appear exactly once in the http block. All parameters are specified as key=value pairs.

http {
    graphite_config prefix=myapp server=10.0.0.50 protocol=udp port=2003
                    frequency=60 intervals=1m|5m shared=2m buffer=64k;
    # ...
}

Minimal configuration:

graphite_config prefix=myapp server=127.0.0.1;

Production configuration with multiple intervals:

graphite_config prefix=prod.nginx server=10.0.0.50 protocol=udp
                intervals=1m|5m params=rps|request_time|response_2xx_rps|response_4xx_rps|response_5xx_rps
                shared=4m;

graphite_data

Context: http, server, location, if

Creates a measurement point that collects metrics for the enclosing location. Each graphite_data directive defines a unique metric path prefix. The built-in metrics (request time, bytes sent, status codes, etc.) are collected automatically for every request that matches the location.

location /api/ {
    graphite_data myapp.api;
    proxy_pass http://backend;
}

Optional parameters:

• params=rps|request_time — Override which metrics to collect for this location (default: all metrics from graphite_config)
• if=$variable — Only collect metrics when the variable evaluates to a non-empty, non-zero value

You can combine both params and if in a single graphite_data directive:

graphite_data nginx.arg params=rps|request_time if=$is_tracked;

Multiple measurement points per location:

You can use multiple graphite_data directives in the same location. This is useful for conditional metric splitting:

map $scheme $is_https {
    https 1;
    default 0;
}

server {
    location /api/ {
        graphite_data myapp.api.all;
        graphite_data myapp.api.https if=$is_https;
        proxy_pass http://backend;
    }
}

With this configuration, myapp.api.all receives metrics for every request, while myapp.api.https only counts HTTPS traffic. Over plain HTTP, the HTTPS metrics remain zero — giving you a clear split between encrypted and unencrypted traffic.

graphite_default_data

Context: http, server

Automatically creates measurement points for all nested locations. Use the special variables $location and $server to generate dynamic metric paths based on location and server names. Non-alphanumeric characters are replaced with underscores.

http {
    graphite_config prefix=myapp server=10.0.0.50;
    graphite_default_data myapp.$server.$location;

    server {
        server_name api.example.com;

        location /users/ {
            proxy_pass http://backend;
        }

        location /orders/ {
            proxy_pass http://backend;
        }
    }
}

In this example, metrics are automatically sent to paths like myapp.api_example_com.users and myapp.api_example_com.orders — no per-location graphite_data directive needed.

Optional parameter: You can pass one additional argument — either params= to limit collected metrics, or if= for conditional collection:

graphite_default_data myapp.$location params=rps|request_time;

or:

graphite_default_data myapp.$location if=$is_tracked;

Note: Unlike graphite_data, the graphite_default_data directive accepts at most one optional parameter. You cannot combine params= and if= in the same directive. If you need both conditional collection and custom params, use graphite_data inside each location instead.

graphite_param

Context: http, server, location, if

Declares a custom metric with explicit aggregation. This directive defines a named metric bucket — but does not automatically collect data from requests. Custom params are designed to be populated from Lua code using the ngx.graphite() API.

* Either aggregate + interval, or percentile must be specified.

Aggregation functions:

Example with Lua (requires lua-nginx-module):

location /checkout/ {
    graphite_param name=myapp.checkout_total aggregate=sum interval=1m;
    graphite_param name=myapp.checkout_rps aggregate=persec interval=1m;
    graphite_data myapp.checkout;

    content_by_lua_block {
        ngx.graphite("myapp.checkout_total", 1)
        ngx.graphite("myapp.checkout_rps", 1)
        ngx.say("OK")
    }
}

Without Lua, graphite_param metrics will report zero. For automatic request metrics (request time, RPS, status codes), use graphite_data instead.

Important: The interval value in graphite_param must not exceed the maximum interval defined in graphite_config. For example, if graphite_config sets intervals=1m, then graphite_param cannot use interval=5m.

Available Metrics

The following built-in metrics are available when using the NGINX Graphite module as a dynamic module (the standard installation method from GetPageSpeed packages). These metrics are collected automatically by graphite_data and graphite_default_data:

Per-Status-Code Tracking

Beyond the broad response_Nxx_rps groups, the NGINX Graphite module can track specific HTTP status codes using the pattern response_XXX_rps. For example:

graphite_config prefix=myapp server=10.0.0.50
                params=rps|response_200_rps|response_404_rps|response_503_rps;

This sends separate metrics for each specified status code, allowing you to alert on specific error conditions like a spike in 503 responses.

Upstream Cache Status Tracking

If you use NGINX’s proxy cache, you can track cache hit rates with the NGINX Graphite module:

graphite_config prefix=myapp server=10.0.0.50
                params=rps|upstream_cache_hit_rps|upstream_cache_miss_rps|upstream_cache_expired_rps;

Available upstream cache statuses: miss, bypass, expired, stale, updating, revalidated, hit.

Metrics Requiring NGINX Source Patch

The following metrics are not available when the module is installed as a dynamic module. They require patching the NGINX source code before compilation:

• ssl_handshake_time — Time spent on SSL/TLS handshake
• content_time — Time spent generating content inside NGINX
• gzip_time — Time spent on gzip compression
• upstream_time — Time communicating with upstream servers
• upstream_connect_time — Time establishing upstream connection
• upstream_header_time — Time receiving upstream response headers
• lua_time — Time spent executing Lua code

For most monitoring use cases, the default metrics provide sufficient visibility. The request_time metric captures the full end-to-end latency, which is typically the most important indicator.

Percentile Calculations

The NGINX Graphite module can calculate percentiles for any metric. Append /<level> to the parameter name to enable percentile tracking. Multiple percentile levels are separated with |.

graphite_config prefix=myapp server=10.0.0.50
                params=rps|request_time|request_time/50|request_time/90|request_time/99;

This configuration produces metrics like:

myapp.hostname.location.request_time_p50 0.5
myapp.hostname.location.request_time_p90 2.3
myapp.hostname.location.request_time_p99 15.7

Percentiles are invaluable for understanding the true user experience. An average response time of 100ms may hide the fact that 1% of users wait over 5 seconds. The p99 value reveals those outliers.

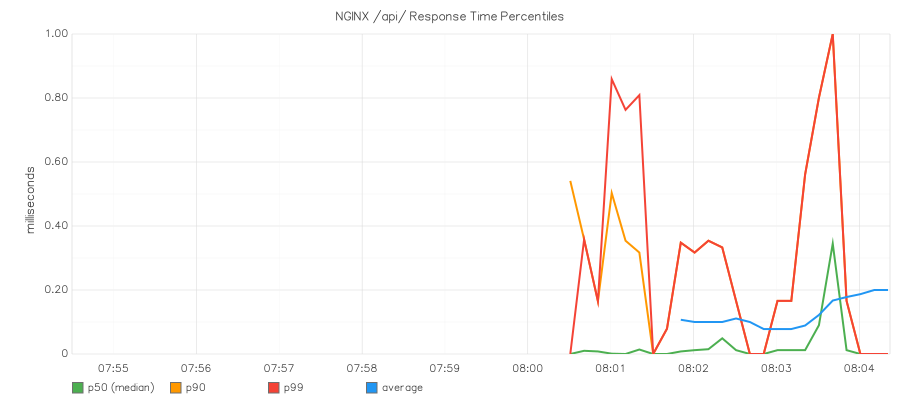

The chart below shows real p50, p90, and p99 response time percentiles captured from NGINX by the Graphite module:

Multiple Aggregation Intervals

You can aggregate the same metrics over different time windows simultaneously. Shorter intervals give faster feedback, while longer intervals smooth out noise.

graphite_config prefix=myapp server=10.0.0.50 intervals=1m|5m;

Each metric is sent with an interval suffix in its path:

myapp.hostname.api.rps_1m 150.5
myapp.hostname.api.rps_5m 142.3
myapp.hostname.api.request_time_1m 12.4
myapp.hostname.api.request_time_5m 11.8

The 1-minute interval is ideal for dashboards and alerting, while 5-minute or 15-minute intervals work better for trend analysis.

Metric Path Template

The default metric path template is $prefix.$host.$split.$param_$interval, where:

• $prefix — The value from the prefix parameter
• $host — The hostname (from host parameter or system hostname)
• $split — The metric path from graphite_data or graphite_default_data
• $param — The metric name (e.g., rps, request_time)
• $interval — The aggregation interval (e.g., 1m, 5m)

You can customize this template:

graphite_config prefix=nginx server=10.0.0.50
                template=$prefix.$host.$split.$param_$interval;

Testing Your Configuration

After configuring the NGINX Graphite module, verify the configuration syntax:

nginx -t

To verify that metrics are actually being transmitted, use nc (netcat) to listen on the Carbon port:

# Listen for UDP data on port 2003
nc -u -l 2003

Then generate some traffic and wait for the configured frequency interval (default: 60 seconds). You should see lines in Graphite’s plaintext format:

myapp.hostname.api.rps_1m 5.000 1709827200
myapp.hostname.api.request_time_1m 12.345 1709827200
myapp.hostname.api.response_2xx_rps_1m 4.833 1709827200
myapp.hostname.api.response_4xx_rps_1m 0.167 1709827200

Each line contains the metric path, value, and Unix timestamp.

Performance Considerations

The NGINX Graphite module is designed for minimal performance impact:

• Fixed memory allocation: Shared memory is allocated at startup and never resized. No dynamic allocation occurs during request processing.
• Non-blocking sends: Metric data is transmitted on a timer, not in the request path. A slow or unreachable Graphite server does not delay request processing.
• Efficient aggregation: Metrics are aggregated incrementally. Each request simply updates counters in shared memory — a fast O(1) operation.

Sizing Shared Memory

The default shared memory size is 1 MB. If you track many locations or use many metrics and intervals, you may need to increase it:

graphite_config prefix=myapp server=10.0.0.50 shared=4m;

If the shared memory zone is too small, NGINX logs an error:

graphite too small shared memory

Increase the shared value when you see this message. A good starting point for servers with many locations is 4m to 8m.

UDP vs TCP

UDP is the default and recommended protocol for most deployments:

• UDP: Fire-and-forget, no connection overhead, no backpressure. If Graphite is down, packets are silently dropped. Best for high-frequency metric sends.
• TCP: Reliable delivery with connection overhead. Use when metrics must not be lost, or when Graphite runs on a remote network where UDP packets might be dropped.

# TCP with custom timeout
graphite_config prefix=myapp server=10.0.0.50 protocol=tcp timeout=200;

SELinux note: On RHEL-based systems with SELinux enforcing, you must allow NGINX to make outbound network connections for TCP mode. Run setsebool -P httpd_can_network_connect 1. Without this, NGINX logs graphite connect failed (13: Permission denied).

UDP Packet Size

If you have many metrics and the data exceeds the maximum UDP packet size, the module splits the data across multiple packets. The default maximum packet size is 1400 bytes, chosen to avoid IP fragmentation on typical networks. Adjust with the package parameter if needed:

graphite_config prefix=myapp server=10.0.0.50 package=1400;

Troubleshooting

“too small shared memory” Error

Increase the shared parameter in graphite_config:

graphite_config prefix=myapp server=10.0.0.50 shared=8m;

“too small buffer size” Error

Increase the buffer parameter:

graphite_config prefix=myapp server=10.0.0.50 buffer=128k;

“param interval value is greater than max interval” Error

The interval in graphite_param exceeds the largest interval defined in graphite_config. For example, this fails:

graphite_config prefix=myapp server=10.0.0.50 intervals=1m;

location / {
    # ERROR: 5m > 1m (max interval)
    graphite_param name=myapp.custom aggregate=avg interval=5m;
}

Fix by adding the required interval to graphite_config:

graphite_config prefix=myapp server=10.0.0.50 intervals=1m|5m;

“unknown param” Error

You are trying to use a metric that requires patching the NGINX source code. When installed as a dynamic module, only the default metrics are available. Metrics like upstream_time, ssl_handshake_time, content_time, and gzip_time require a static build with the included NGINX source patch.

“connect failed (13: Permission denied)” Error

On RHEL-based systems with SELinux enforcing, NGINX is not allowed to make outbound TCP connections by default. Enable the httpd_can_network_connect boolean:

sudo setsebool -P httpd_can_network_connect 1

This is required for TCP protocol mode. UDP mode does not typically trigger this error.

No Data Arriving in Graphite

1. Check NGINX error log for graphite-related messages
2. Verify network connectivity: Can the NGINX server reach the Carbon server on the configured port?
3. Check the frequency: Default is 60 seconds. Wait at least one full interval after generating traffic.
4. Test with netcat: Run nc -u -l 2003 on the Graphite server to confirm packets arrive
5. Check SELinux: If using TCP mode, ensure httpd_can_network_connect is enabled

Complete Configuration Example

Here is a production-ready configuration that monitors an API server with multiple endpoints. This example demonstrates how the NGINX Graphite module integrates with a typical reverse proxy and load balancing setup:

load_module modules/ngx_http_graphite_module.so;

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;

events {
    worker_connections 1024;
}

http {
    include /etc/nginx/mime.types;
    default_type application/octet-stream;

    graphite_config prefix=prod.nginx server=10.0.0.50
                    intervals=1m|5m
                    params=rps|request_time|request_time/90|request_time/99|bytes_sent|response_2xx_rps|response_4xx_rps|response_5xx_rps
                    shared=4m;

    graphite_default_data prod.$server.$location;

    upstream backend {
        server 10.0.0.10:8080;
        server 10.0.0.11:8080;
    }

    server {
        listen 80;
        server_name api.example.com;

        location / {
            proxy_pass http://backend;
        }

        location /health {
            graphite_data prod.health params=rps;
            return 200 "OK\n";
        }

        location /static/ {
            graphite_data prod.static params=rps|bytes_sent;
            root /var/www;
        }
    }
}

This configuration sends metrics like:

• prod.nginx.hostname.prod.api_example_com._.rps_1m — Overall requests per second
• prod.nginx.hostname.prod.api_example_com._.request_time_p90 — 90th percentile response time
• prod.nginx.hostname.prod.health.rps_1m — Health check request rate
• prod.nginx.hostname.prod.static.bytes_sent_1m — Static file bandwidth

Note that locations with both graphite_default_data and explicit graphite_data will produce two sets of metrics — one from each directive. This is by design and allows you to track the same endpoint under different metric path hierarchies.

Conclusion

The NGINX Graphite module transforms NGINX from a black box into a rich source of per-location performance telemetry. For system administrators running Graphite-based monitoring stacks, it eliminates the need for log parsing pipelines and status page scrapers. Metrics flow directly from NGINX’s request processing into your dashboards.

The module is available as a pre-built package from the GetPageSpeed repository for RHEL-based systems and from the APT repository for Debian and Ubuntu. The source code is on GitHub.
